Alsentis® HSS™ Discrete Touch Chipsets
A0021
HSS BASIC 1-6 Input Touch Button Chipsets
The A0001 family of chipsets are 1-6 input discrete touch button sensor chipsets that communicate to host microcontrollers through standard I²C protocol.
    • Part Number
    • Description
    • I/O
    • Temp
    • Package
    • A0021-000-C1S-001
    • 1 to 6 Input, Std. Signature, Consumer
    • 1²C, IRQ
    • -40°C to +85°C
    • 16 pin SOIC
    • A00021-000-C1T.001
    • 1 to 6 Input Std. Signtaure, Consumer
    • 1²C, IRQ
    • -40°C to +85°C
    • 16 pin TSSOP
    • A00021-000-C1Q.001
    • 1 to 6 Input Std. Signature, Consumer
    • 1²C, IRQ
    • -40°C to +85°C
    • 16 pin QFN
A0021 Diagram
A0061
HSS BASIC 1-15 Discrete Touch Button Sensors Chip
The A0061 are 1-15 input discrete touch button sensor chipsets that communicate to host microcontrollers through standard I²C protocol.
    • Part Number
    • Description
    • I/O
    • Temp
    • Package
    • A0061-000-C1Q.001
    • 1 to 15 Input, Std. Signature, Consumer
    • 1²C, IRQ
    • -40°C to +85°C
    • 28 pin QFN
    • A0061-000-C1R.001
    • 1 to 15 Input, Std. Signature, Consumer
    • 1²C, IRQ
    • -40°C to +85°C
    • 28 pin SSOP
    • A0061-000-C1S.001
    • 1 to 15 Input, Std. Signature, Consumer
    • 1²C, IRQ
    • -40°C to +85°C
    • 28 pin SOIC
A0061 Diagram
A0001
HSS ROBUST 1-6 Input Touch Chipsets
The A0001x family of chipsets are 1-6 input discrete touch button sensor chipsets that communicate to host microcontrollers through standard I²C protocol.
Water Immune.
Passes 10V injected line noise.
Works with Gloves.
    • Part Number
    • Description
    • I/O
    • Temp
    • Package

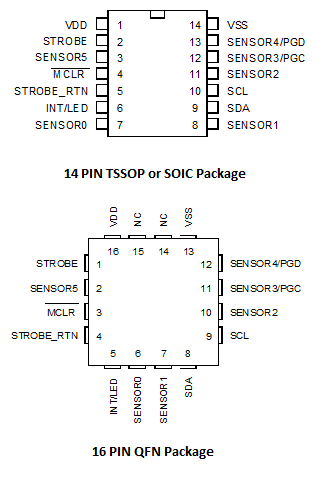

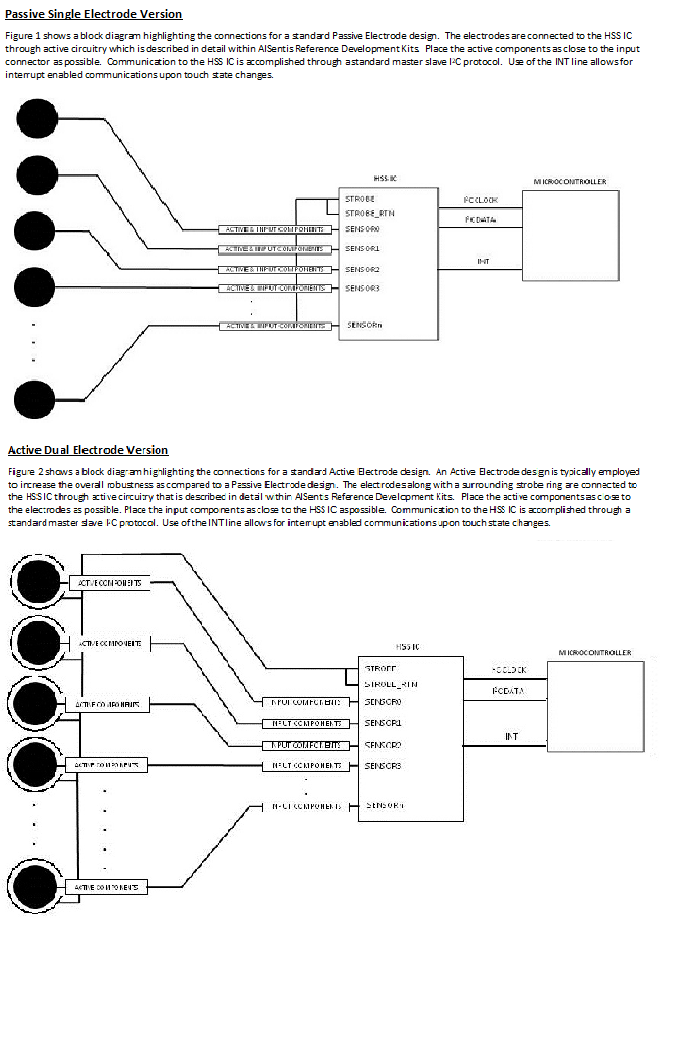

A0001 Diagram
A0002
HSS ENHANCED LOW POWER 1-6 Discrete Chip
The A0002 family of Enhanced Low Power (ELP) chipsets are 1-6 input discrete touch button sensor chipsets that communicate to host microcontrollers through standard I²C protocol.
Ultra-Low Power Consumption
Water Immune.
Passes 10V injected line noise.
Works with Gloves.

Contact AlSentis for details or development kits - info @ alsentis.com
    • Part Number
    • Description
    • I/O
    • Temp
    • Package
A0002 Diagram
A0009
HSS ROBUST 1-15 Input Touch Chipset
The A0009 family of chipsets are 1-15 input discrete touch button sensor chipsets that communicate to host microcontrollers through standard I²C protocol.
Water Immune.
Passes 10V injected line noise.
Works with Gloves.
    • Part Number
    • Description
    • I/O
    • Temp
    • Package
A0009  Diagram
A0018
(BETA) HSS ENHANCED LOW POWER 1-12 Discrete Chip

The A00018 family of Enhanced Low Power (ELP) chipsets are 1-12 input discrete touch button sensor chipsets that communicate to host microcontrollers through standard I²C protocol.
Ultra-Low Power Consumption
Water Immune.
Passes 10V injected line noise.
Works with Gloves.

Contact AlSentis for details or development kits - info @ alsentis.com
    • Part Number
    • Description
    • I/O
    • Temp
    • Package
A0018 Diagram
